Place of Origin : Shanghai, China
Brand Name : LONGWAY
Model Number : LW16092014
Packaging Details : electrolytic capacitor paper,foam,carton
Supply Ability : 50000 Piece/Pieces per Month
MOQ : 500 pieces
Price : negotiation
Certification : ISO9001
Payment Terms : D/P,T/T,Western Union
Customized support : OEM
Structure : Double-convex
Shape : Spherical, Optical spherical
Surface : Polished
Transmission : over 92%
Coating : available
Application : Optics and lighting
Type : camera lens

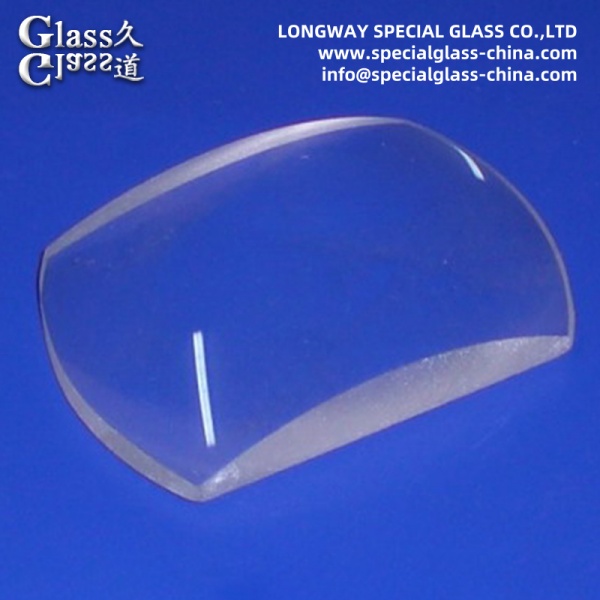

Custom Optical Double Convex magnifying Glass Lens For Magnifier and Camera
they are designed for magnification and image enhancement, which have two curved surfaces that work together to produce a highly corrected image.
Key Features:
These lenses are perfect for use in magnifiers, cameras, and other optical instruments where high-magnification is required. They offer:
They can be used in various applications, such as:
Material | Optical Glass, Fused Silica, quartz |
Diameter Tolerance | +0/-0.15 mm |
Thickness Tolerance | +/-0.1 mm |
Cler Aperture | over 90% |
Surface Quality | 60/40 |
Transmission | above 92% |
Chamfer | 0.1-0.4 mm x 45 degree |
Focal Length Tolerance | +/-1.5% |
Back Focal Length Tolerance | +/-1.5% |
Coating | available |
Usage | optical system, photographic sysem, Lighting system, e.g. laser, camera, magnifier etc. |
![]() |
Custom Optical Double Convex magnifying Glass Lens For Magnifier Images |
